CHARPY / IZOD CUTTING & PREPARATION MACHINES


MOTORISED CHARPY BROACHING MACHINE SPARES


Click to enlarge images

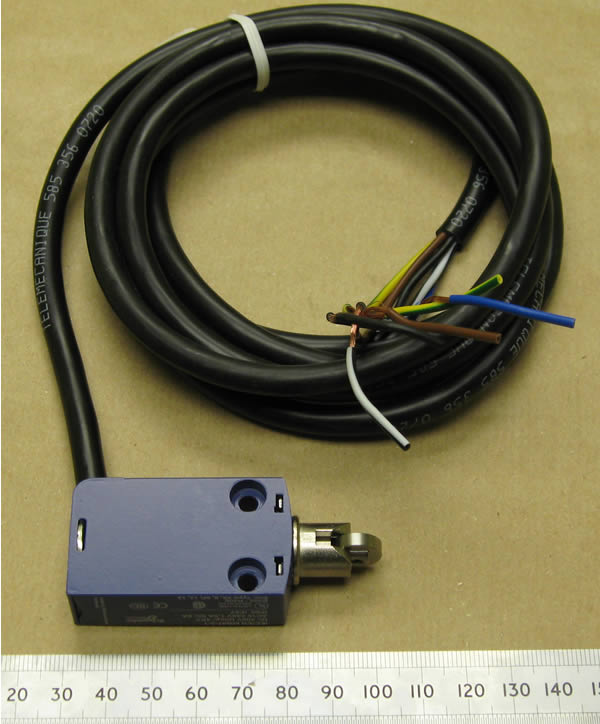

BROACH GUARD SWITCH TAB01-003


 BROACH GUARD SWITCH

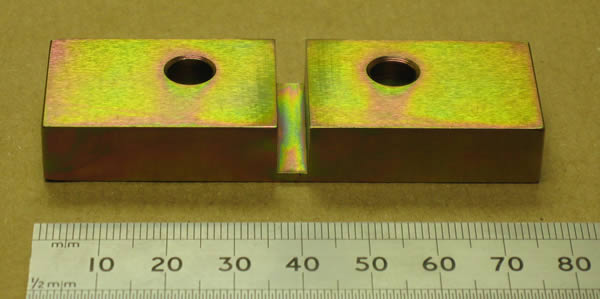

TAB01-003		 BROACH KEEP TYPE X CNB20-004A2-X
 		 BROACH KEEP
TYPE X
CNB20-004A2-X

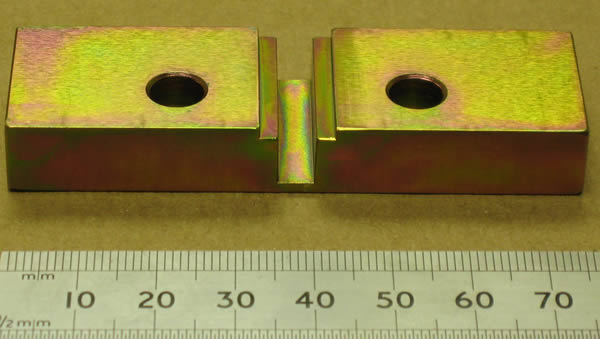

BROACH KEEP TYPE Y CNB20-004A2-Y
 		 BROACH KEEP
TYPE Y
CNB20-004A2-Y		 CLAMP ASSEMBLY CNB31-002A1
 		 CLAMP ASSEMBLY
CNB31-002A1

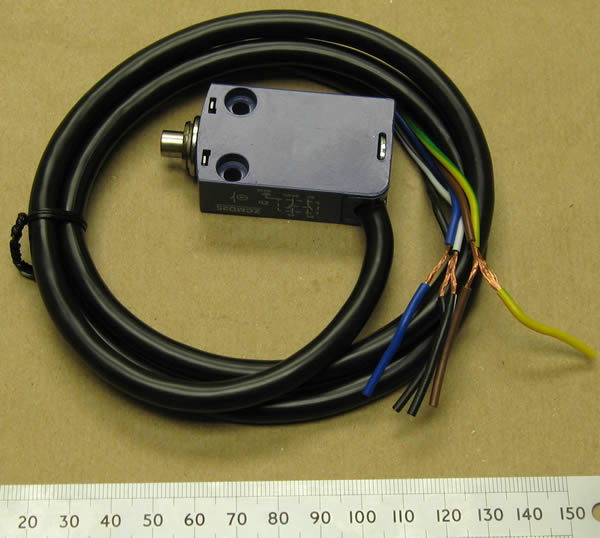

DOOR LIMIT SWITCH TAB01-006
 		 DOOR LIMIT SWITCH

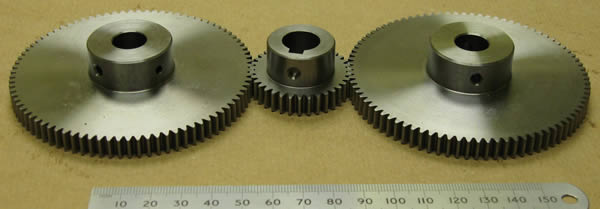

TAB01-006		 FIXED MACHINE GEAR SET CNB20-018A3
 		 FIXED MACHINE GEAR SET
CNB20-018A3

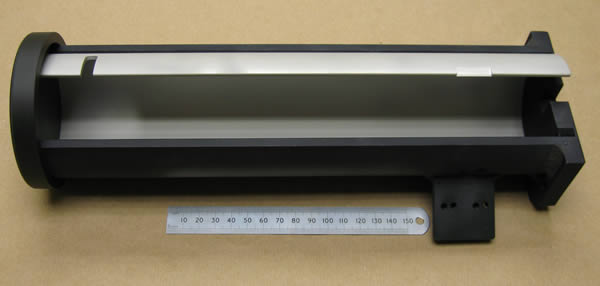

GUARD SUB ASSEMBLY CNB31-037A1, CNB31-038A2 & CNB31-040A3
 		 GUARD SUB ASSEMBLY
CNB31-037A1 - GUARD BODY
CNB31-038A2 - INNER GUARD

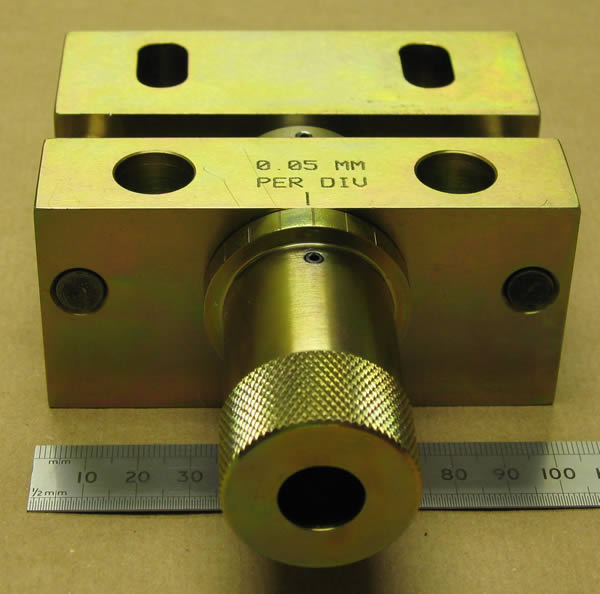

CNB31-040A3 - TOP CAP		 INDEX BACKSTOP SUB ASSEMBLY CNB31-024A2
 		 INDEX BACKSTOP SUB ASSEMBLY
CNB31-024A2

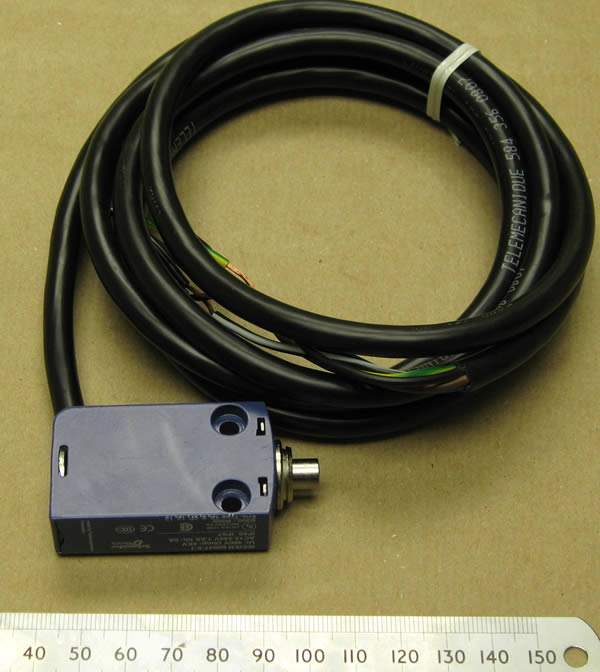

INSPECTION COVER SWITCH TAB01-004
 		 INSPECTION COVER SWITCH

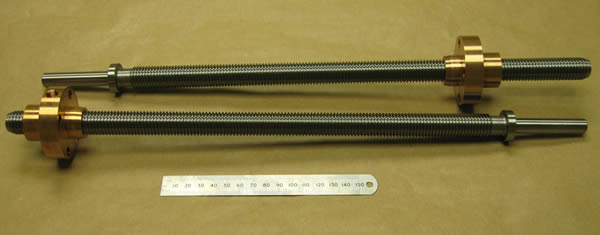

TAB01-004		 LEADSCREW & NUT PAIR CNB20-015A2 & CNB20-027A2
 		 LEADSCREW & NUT PAIR
CNB20-015A2 - LEAD SCREWS
CNB20-027A2 - NUTS

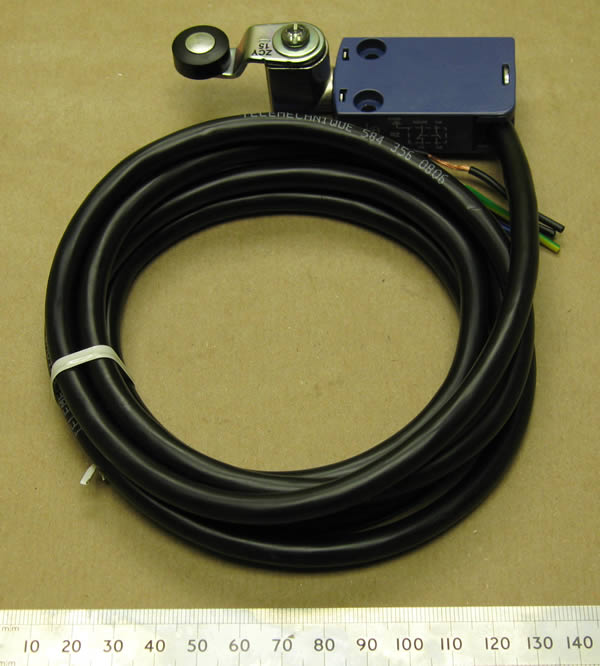

PULL PLATE LIMIT SWITCH TAB01-002
 		 PULL PLATE LIMIT SWITCH

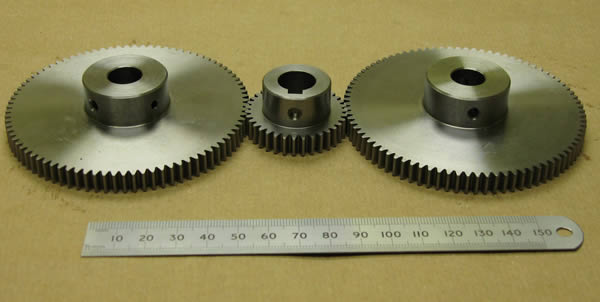

TAB01-002		 VARIABLE MACHINE GEAR SET PINION CNB34-003A3 GEARS-CNB20
 		 VARIABLE MACHINE GEAR SET
CNB34-003A3 - PINION
CNB20
